In the realm of automotive technology, Electronic Control Units (ECUs) play a pivotal role, governing engine performance and vehicle systems. A lesser-known but intriguing topic is ECU cloning, a process that garners attention from both enthusiasts and professionals.

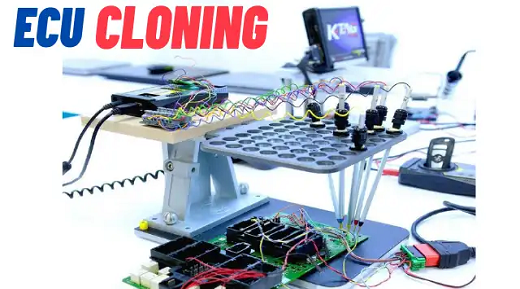

ECU cloning refers to the process of copying the software and data from one Engine Control Unit (ECU) to another. This technique is often employed for various reasons, including replacing a damaged ECU, upgrading to a newer version of software, or customizing the engine management system to enhance performance.
ECU cloning requires specialized tools that facilitate the extraction and transfer of data from one Engine Control Unit (ECU) to another. Here are some essential tools commonly used for ECU cloning:
KESS programmer: A versatile tool that supports OBD, Bench, and Boot modes. It is known for its user-friendly interface and compatibility with a wide range of vehicles. KESS V3 is particularly powerful due to its advanced microprocessor, making it suitable for both professionals and enthusiasts.
FC200 programmer: This tool is designed for cloning various ECUs, especially in BMW vehicles. It supports multiple protocols and can read/write data without opening the ECU casing, which preserves the original components.
IO-PROG Programmer: A tablet-based tool that supports ECU, TCM, and BCM cloning. It can read and write memory areas through OBD, Bench, and Boot modes, making it a good choice for beginners.
PCMtuner Fetrotech Programmer : This tool is effective for ECU/TCU cloning and supports multiple languages. It provides a physical connection diagram for ease of use.
Why is “ECU CLONING” DONE?
Improved Engine Performance: Cloning can optimize engine settings for better performance and increased power.
Cost-Effectiveness: It is often cheaper than purchasing a new ECU or repairing a damaged one.
Increased Fuel Efficiency: By fine-tuning settings, cloned ECUs can help reduce fuel consumption.
Reduced Emissions: Optimized settings can lead to lower emissions, making vehicles more environmentally friendly.
Better Drivability: Cloning can enhance vehicle responsiveness and overall driving experience.
ECU CLONING, while the concept might sound straightforward, executing ECU cloning is a complex task due to security measures such as lockouts, anti-tampering software, and immobilizer systems. Common steps involve:
Communication: Connecting the ECU to a programmer via OBD-II port or specialized connectors.
Unlocking: Disabling security protocols, often through proprietary software or diagnostics tools.
Data extraction and manipulation: Retrieving the ECU’s binary file, modifying if required, and saving it.
Installation: Replacing the original ECU with the cloned unit or programming the clone back into the car.
Not all ECUs are compatible for cloning; mismatched units can lead to malfunctions. For those considering ECU cloning, it is advisable to consult with professionals who specialize in this area to ensure proper execution and avoid potential issues.
