Modern vehicles are sophisticated electronic ecosystems, with the Engine Control Unit (ECU) acting as the brain that regulates every critical function, from fuel injection and ignition timing to emission control and transmission shifting. When an ECU board malfunctions, it can trigger a cascade of issues: rough idling, reduced fuel efficiency, or even complete engine failure. Repairing these complex circuit boards demands precision tools, and among them, the digital oscilloscope stands out as an irreplaceable asset.
What Role of Digital Oscilloscopes in ECU Board Repair?
1. Non-Invasive Testing: Protecting Delicate ECU Components.
ECU boards are packed with miniaturized components: resistors, capacitors, and micro chips that are easily damaged by physical probing. Digital oscilloscopes use isolated probes that draw minimal current from the circuit, allowing technicians to test signals without disconnecting components or risking electrostatic discharge (ESD) damage.
2. Diagnosing Intermittent Circuit Faults.
Intermittent ECU issues are the bane of repair work. A loose solder joint on the ECU board, a degraded trace, or a faulty transistor might only fail when the board heats up or vibrates. Multimeters and code scanners can’t track these intermittent failures because they don’t record signal history or capture glitches that last microseconds.
Digital oscilloscopes solve this with signal recording and playback features. Technicians can set the scope to monitor critical ECU signals over minutes or hours, then review the waveform data to spot anomalies. The scope will log this drop, whereas a multimeter checked at idle would show a normal reading—leading to misdiagnosis.
3. Capturing Transient Signals.
Car ECU circuits operate on dynamic, time-sensitive signals think pulse-width modulated signals for fuel injectors, analog voltage fluctuations from sensors, or serial communication signals between the ECU and other vehicle modules. These signals are often transient, they appear for milliseconds or only under specific conditions.

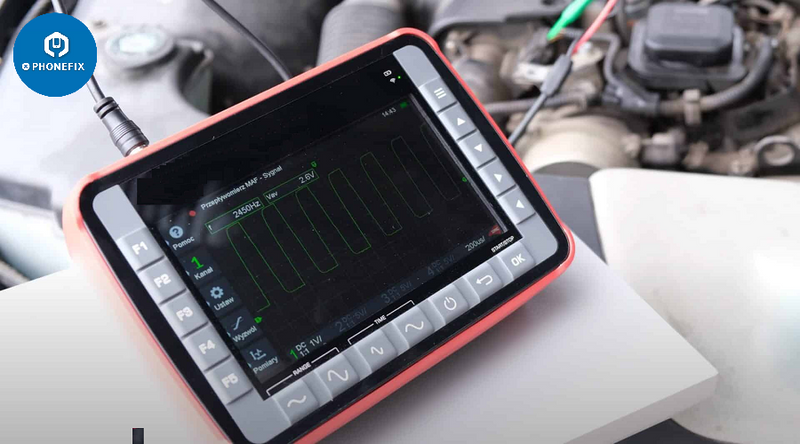

Multimeters can only measure static values, such as DC voltage, resistance and miss these fleeting anomalies. By contrast, digital oscilloscope, visualizes these signals in real time with high sampling rates and bandwidths. For example, if an ECU’s output to a fuel injector is sending erratic PWM pulses, a scope will display the irregular waveform—allowing technicians to pinpoint whether the issue lies in the ECU’s driver circuit or a faulty component like a capacitor. Without this visibility, diagnosing transient faults becomes a game of guesswork.
4. Verifying Communication Bus Integrity.
Digital oscilloscopes can analyze bus waveforms to check for signal attenuation, bus errors, timing mismatches between the ECU and other modules. Modern ECUs rely on CAN or LIN buses to communicate with other vehicle systems. A broken or noisy bus signal can cause the ECU to misinterpret data, something car code scanner would never reveal. Without bus waveform analysis, technicians might waste hours replacing perfectly good ECUs or modules.
5. Complementing Code Scanners.
Code scanners are valuable for reading diagnostic trouble codes (DTCs) from the ECU, such as P0300: Random Misfire. But they stop at telling you what is wrong, not why. Is the misfire caused by a faulty ECU injector driver, a bad sensor signal, or a wiring issue?
A digital oscilloscope bridges this gap. For a P0300 code, a technician can use the scope to:
Check the ECU’s PWM signal to the problematic injector.
Verify the crankshaft position sensor’s waveform.
Test the ECU’s 12V power supply.
By correlating DTCs with waveform data, technicians move targeted, cost-effective repairs to saving time and avoiding unnecessary part replacements.
Visit the Chinese ECUfixtool shop now and choose the diagnostic tool that suits you. The shop provides a series of professional automotive repair tools such as ECu programmers, oscilloscopes, scanners, car performance chips, etc.
As ECUs grow more complex, the demand for precise diagnostic tools only increases. A digital oscilloscope that can see the invisible electrical activity of an ECU, turning vague symptoms into actionable data. For automotive technicians, investing in a quality digital oscilloscope isn’t an option, it’s essential to delivering reliable ECU repairs in a world.
