Description
UM34 UM34C UM24 UM24C UM25 UM25C Type- C Color LCD Meter Portable Digital USB Multimeter, UM34 UM34C for APP USB 3.0 Type-C DC Voltmeter ammeter voltage current meter battery charge measure cable resistance Tester,RD UM25 UM25C for APP USB 2.0 Type-C LCD Voltmeter ammeter voltage current meter battery charge usb Tester,UM24 UM24C APP USB 2.0 LCD Display Voltmeter ammeter battery charge voltage current meter multimeter cable measure Tester.
Option:

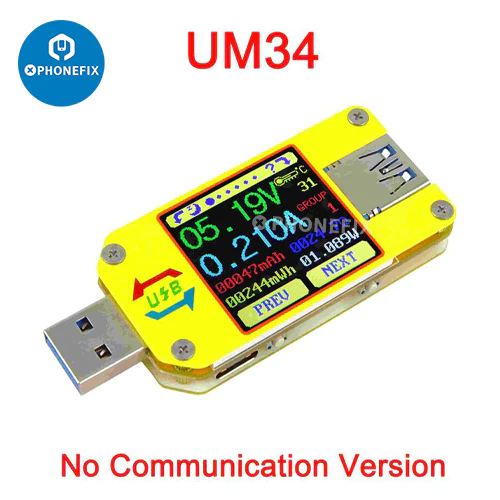

UM34 : no bluetooth board

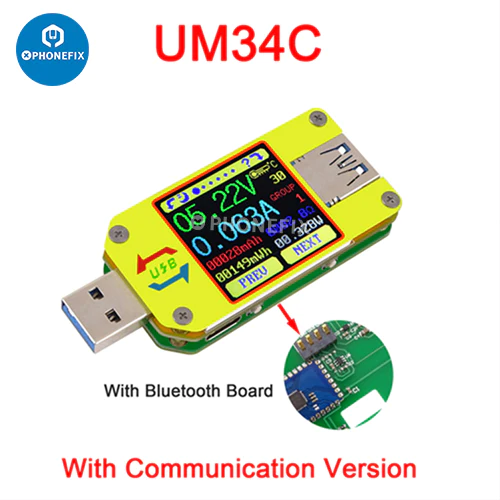

UM34C : with bluetooth board
UM25 : no bluetooth board

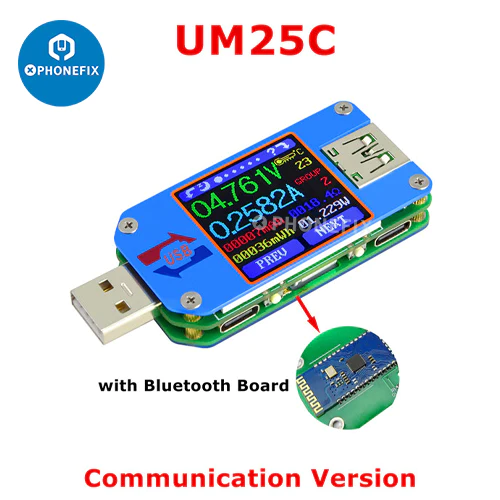

UM25C：with bluetooth board

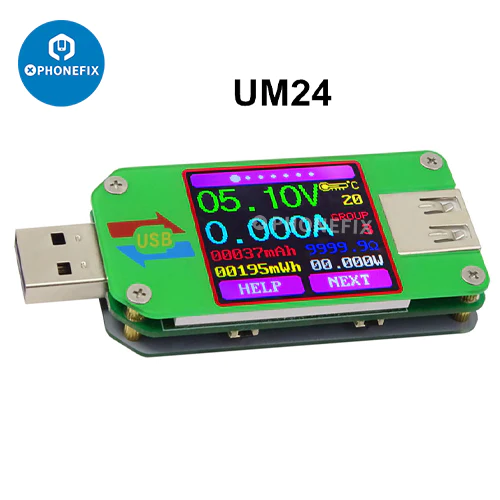

UM24 : no bluetooth board

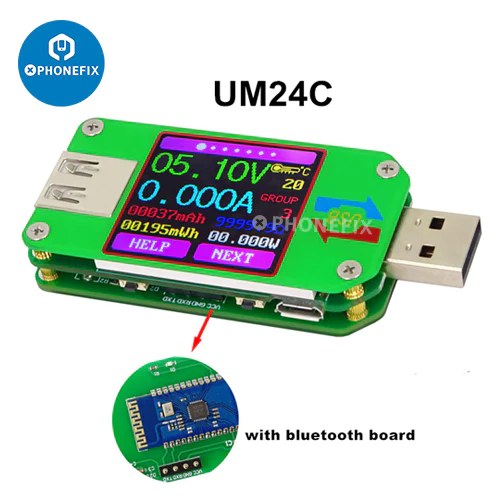

UM24C : with bluetooth board
UM34/UM34C Technical Parameter:
Product Model:UM34/UM34C
Display screen:1.44 Inch color LCD display
Voltage measurement range:4-24.00V
Voltage measurement resolution:0.01V
Current measurement range:0-4.000A
Current measurement resolution:0.001A
Capacity accumulation range:0-99999mAh
Voltage measurement accuracy:±（0.2％+1 digit）
Energy accumulation range:0-99999mWh-999.99Wh
Current measurement accuracy:±（0.8％ +3digits）
Load impedance range:0.8Ω-9999.9Ω
Time measurement range:0-99h59min59s
Temperature range:-10℃～100℃/0℉～200℉
Temperature measurement error:±3℃/±6℉
Screen brightness setting:0-5 levels
Auto screen off time:0-9mins
Voltage graphing range:4-24.00V
Current graphing range:0-4.000A
Refresh rate:2Hz
Product size:71.2mmx30.5mmx12.4mm(UM34C)/71.2mmx30.5mmx11.3mm(UM34)
Product weight:22.87g(UM34C)/18.39g (UM34)(No packaging);51.43g(UM34C)/46.95g (UM34)( With packaging)
Quick charge recognition mode:QC2.0、QC3.0、APPLE 2.4A/2.1A/ 1A/0.5A、Android DCP、SAMSUNG
USB port: USB 3.0 port , support OPPO phone VOOC, OnePlus DASH
Instruction:
User manual and Android APP download link:
1.http://www.mediafire.com/folder/5c877rc21tp1p/UM34
2.https://drive.google.com/drive/folders/1694HfafBjRJX7lDPaoahCoV6em1AjlE8?usp=sharing
APP Download:
IOS APP:search "UM meter" in iPhone APP store
Android APP: search "RuiDeng" in google play
UM25/UM25C Technical Parameter:
Product Model: UM25/UM25C
Display screen: 1.44 Inch color LCD display
Voltage measurement range: 4-24.000V
Voltage measurement resolution: 0.001
Current measurement range: 0-5.0000A
Current measurement resolution: 0.0001A
Capacity accumulation range: 0 - 99999mAh
Voltage measurement accuracy: ±(0.5‰+2digits)
Energy accumulation range: 0-99999mWh
Current measurement accuracy: ±(1‰ +4 digits)
Load impedance range: 0.8Ω-9999.9Ω
Time measurement range: 0-99h59min59s
Temperature range: -10℃ - 100℃ / 0℉ - 200℉
Temperature measurement error: ±3℃/±6℉
Screen brightness setting: 0 - 5 levels
Auto screen off time: 0 - 9mins
Voltage graphing range: 0 - 24.00V
Current graphing range: -5.0000A
Refresh rate: 2Hz
Quick charge recognition mode: QC2.0, QC3.0, APPLE 2.4A / 2.1A / 1A / 0.5A, Android DCP, Samsung.
Instruction:
User manual, PC software installation instruction and PC software and Android APP download link:
A:https://drive.google.com/drive/folders/1IiA3BS3zyUCKriGZGRKI9JoQnb88FYs3?usp=sharing
B:http://www.mediafire.com/folder/q2b8h079hpywq/UM25
APP Download:
IOS APP:search "UM meter" in iPhone APP store
Android APP: search "RuiDeng" in google play
UM24/UM24C Technical Parameter:
Product Model: UM24/UM24C
Product weight: 23.47g(UM24C) / 18.83g(UM24)
Voltage measurement range: 4.50-24.00V
Voltage measurement resolution: 0.01V
Current measurement range: 0.000-3.000A
Current measurement resolution: 0.001A
Capacity accumulation range: 0-99999mAh
Voltage measurement accuracy: ±(0.2%+1 digit)
Energy accumulation range: 0-99999mWh
Current measurement accuracy: ±(0.8%+3 digit)
Load impedance range: 1.5-9999.9Ω
Time measurement range: 0-99h59min59s
Temperature range: -10℃ ~ 100℃/0℉ ~ 200℉
Temperature measurement error: ±3℃/±6℉
Screen brightness setting: 0-5 level
Auto screen off time: 1-9mins
Voltage graphing range: 04.5-24.0V
Current graphing range: 0.00A-3.00A
Display screen: 1.44 inch color LCD display
Quick charge recognition mode: QC2.0 QC3.0
Refresh rate : 2Hz
Product size: 71.2mm x 31.8mm x 12.4mm (UM24C)
71.2mm x 31.8mm x 11.3mm (UM24)
Note :
UM24 is no communication version, UM24C is conmmunication version by Bluetooth connection.
PC software support PC window (Win 7 and above) and Phone Android (Android 5.0 and above, support 12 kinds language, chinese, english and Russia .... ).
User manual, PC software installation instruction and PC software and Android APP download link: http://www.mediafire.com/folder/0jt6xx2cyn7jt/UM24
About demo video and APP test and other function introduction, pls contact with us.
For Android APP :
APP only support android 5.0 and above.
Allow APP to do in the background, not be cleaned.
Allow APP self-starting.
Allow APP stay after screen locked, not be cleaned.
Instruction:
User manual, PC software installation instruction and PC software and Android APP download link:
1.http://www.mediafire.com/folder/0jt6xx2cyn7jt/UM24
2.https://drive.google.com/drive/folders/1SrucdPHVXJE-fxOhsGJz-qxUFjDnbtd3?usp=sharing
APP Download:
Android APP: search "RuiDeng" in google play
