Description
REFOX RP30 multifunctional restore programmer for iPhone 8-13 pro Max battery dot projector face ID repair. REFOX RP30 repair programmer supports original mobile phone screen data, battery data, Face ID encryption chip information reading and writing. Write the information into the new corresponding parts, and realize the normal use of the mobile phone after replacing the parts with the original ones.
REFOX RP30 Multifunctional Restore Programmer For iPhone Compatible With Battery Repair/Face ID Fix Dot Projector Detection.
REFOX RP30 repair programmer allows you to read and write information about Apple iPhone's battery, Face ID, and other data. The battery detection board and the dot projector detection board are compatible with our phone repair programmer. It communicates with the REFOX assistant software on the computer through the Type-C cable. Write the original battery data and Face ID encryption chip information into the new corresponding parts, and your iPhone will resume regular operation after replacing.
Features:
1.Support battery data read and write, and Face ID fix.
2.The device function can be expanded via the online free firmware.
3.Repair the underlying data, accessories information won't be distorted.
4.Data cloud backup to prevent data loss.
5.Easy to use, multi-language support.
Battery Detection/Data Repair:
[Battery Data Read & Write]
Battery reading and writing is applicable for iPhone 8-13 Pro Max.
Allow iPhone SE 2020/X/XR/XS/XS Max offline and online programming.
No popup, no alert message, no reset.
Identification of authenticity, battery activation, charge, and discharge.
Overcurrent protection, reverse connection protection.
Data cloud backup and download are allowed.
Power-efficient battery tag-on cables. (Shut off mode 200uA, standby mode 1.5mA)
Face ID Dot Projector Repair：
One key to unbind the face-encrypted data on the iPhone X-12 series.
One key to read and write the dot projector data.
Update the data code checking function, effective detecting once plug-in.
Upgrade to enter or exit recovery mode with one click.
The dot projector flex cables are compatible with the latest iOS system.
Specifications:
Brand: REFOX
Model: RP30
Name: Multifunctional Restore Programmer
Product Size: 86*108*14.5mm
Packing Size: 120*136*42mm
Net Weight: 115g
Gross Weight: 250g
Attention For RP30 Restore Programmer
1. Detection modules for the battery and dot projector are optional. There is an additional charge for external battery cables and dot projector cables.
2. Adapt the new mobile phone model by upgrading the hardware (connect the function board) and software (update the firmware).
3. The language should be set before inserting the detection module if you need to change it.
4. REFOX assistant software only works with Windows systems currently.
5. Battery repair facts:
a. Models below iPhone X can replace the battery directly, and no pop-up window.
b. iPhone XR/XS/XS Max can edit cycles number and battery health data when replacing battery cells, and no battery tag-on cables are required.
c. iPhone 11-13 Pro Max must be matched with the REFOX external battery cable to write the data. Don't reverse the cable's direction at the connector.
6. Face ID recognition failure repair requires REFOX dot projector cables.
7. The device is intended for personal study, analysis, and testing only.

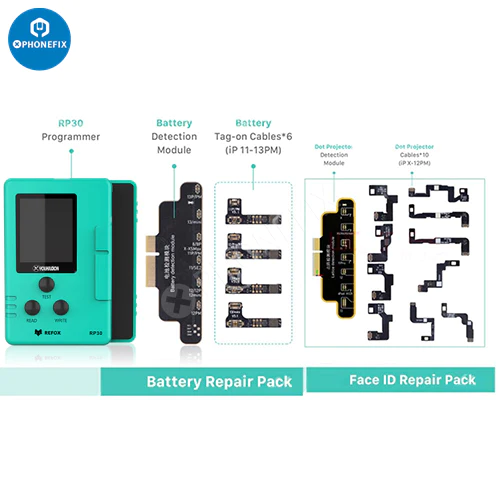

Package Included:
1* RP30 Programmer
1* Type-C Cable
1* Manual
1* Battery Detection Module (Optional)
1* Dot Projector Detection Module (Optional)
6* Battery Tag-on Flex Cable (Optional)
10* Dot Projector Flex Cable (Optional)
