Description

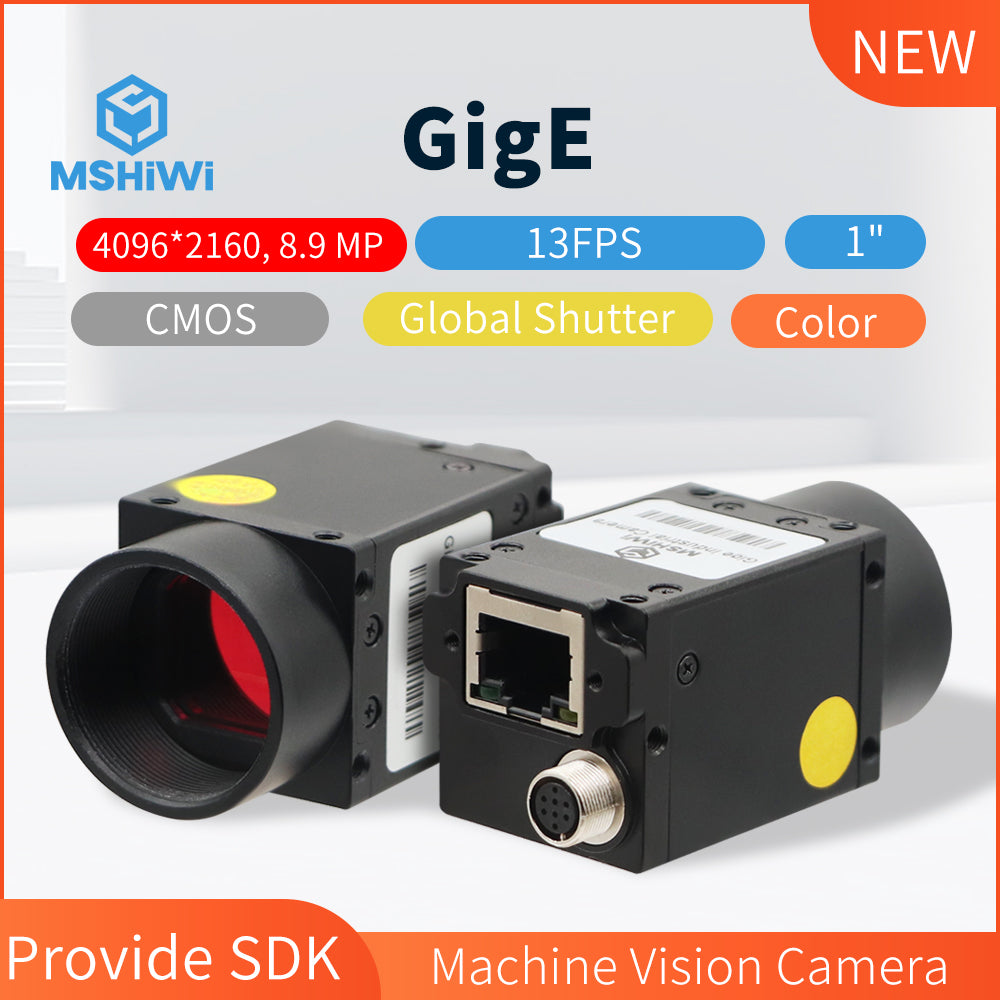

8.9MP GigE machine vision camera, has a max. resolution of 4096X2160 pixel, 1" format Cmos, 13fps maximum frame rate, global shutter type, 4096X2160 (8.9 Mega Pixel) GigE area scan industrial camera can meet various visual applications such as mobile phone screen detection, defect detection, electronic components manufacturing, wafer positioning applications, etc.
GigE Series Features:
1) 100 meters long distance stable transmission, support POE power supply (default does not support POE);
2) Compatible vision standard, direct support Halcon, VisionPro and other software;
3) Pixels from 0.3MP to 14MP, CCD and CMOS;
4) Comes with hardware image processing acceleration, reduce the host side CPU occupancy rate;
5) Support multi-camera at the same time, the number is not limited, any network;
6) Unique packet retransmission technology; to ensure reliable transmission of data;
7) Excellent SDK design, like the use of USB camera as simple, plug and play;
8) Support external trigger and flash sync, up to seven GPIO, all optical isolation;
9) Dimensions are 29x29x40 mm.
Standard Equipment:
1) Camera, CS / C adapter ring, Trigger line.
2) WDM driver, Directshow, TWAIN, Halcn, OCX, Labview components.
3) Camera demonstration software, Measurement software for 32 / 64WINDOWS XP, WIN7, WIN8 and WIN10 operating system.
4) SDK package, including VC / C + +, C + + builder, VB6, VB.NET, Delphi, C # development routines.
5) Offline RAW to RGB program.
6) For a number of color cameras at the same time high-speed preservation of RAW image data offline converted to bmp or jpg formatimages.
Feature Of Product:
1) Support multi-camera work at the same time, stable and reliable, fully compatible with the USB camera SDK, can be seamlessreplacement.
2) Camera parameters archived in the form of preservation, easy production release, the development of simple, cross-platformcompatible.
3) Camera name can be modified to easily distinguish between multi-camera.
4) Support 8bit, 24bit, 32bit image data format output.
5) Support small resolution high frame rate preview, large resolution capture function, seamless switching.
6) Support for resolution customization. View cut (ROI), BIN, SKIP point, zoom function can be freely combined set, match thedifferent aspect ratio and visual field requirements
7) The fuselage comes with up to 16K bytes of user data storage space.
8) Comes with hardware acceleration module, to achieve LUT, color correction and other functions, effectively reduce the host CPUoverhead.
Package incluede:
1 x Industrial Camera(No Include Lens)
1 x Trigger line
1 x 5 Meters Gigabit Ethernet Cable
1 x 12V Power Supply
Industrial Camera Parameters:
Model: HT-GEF890GM-T-CL

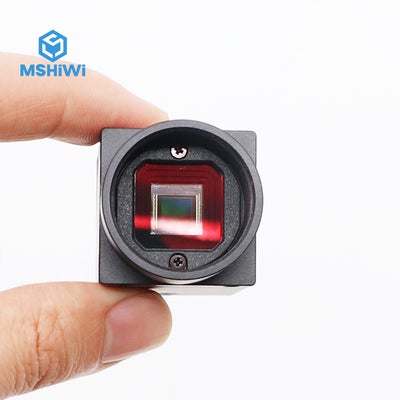

Sensor: 1" CMOS
Shutter Type: Global Shutter
Camera Type: Monochrome
Pixel Size: 3.45*3.45μm
Effective Pixels: 8.9 MP
Resolution @FPS: 4096X2160@13FPS
Pixel Bit Depth: 12bit
Sensitivity: 915mV
GPIO: 6-pin Hirose Connector
Acquisition: Continuity/Soft Trigger/Hard Trigger
Maximum Gain (multiple): 249.9
Exposure Time (ms): 0.034~71303
Filters: NONE
Frame Buffer: 32M Bytes
Custom Data: 2K Bytes
Video Output Format: Bayer8、Bayer12、Mono8、Mono12、Mono16、RGB8、RGB32、RGB48
Visual Standard Protocol: GigE Vision 、GenICam
Lens Interface: C Mouth
Data Interface: RJ45 Gigabit Ethernet interface
Power Supply: 12V(Optional POE Power Supply)
Power: <2.5W
Dimensions: 29(mm)X39.5(mm)X40(mm)
Weight: < 100g
Operating Temperature: 0~50 Degrees
Operating System: Support WIN7/8/10 32&64 System; PC Linux System
Driver: Directshow; Halcon; Labview; OCX; TWAIN Component
Programming Ianguage: C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/OpenCV
Other Functions: Support ROI resolution, contrast and gamma adjustment, saturation adjustment, etc.
Machine Vision Software:
Support Halcon, OpenCV, LabView, Matlab, Python, etc.
Demo Source Code:
Hardware Trigger Line Sequence:
Camera Size:
Product Packing List:
