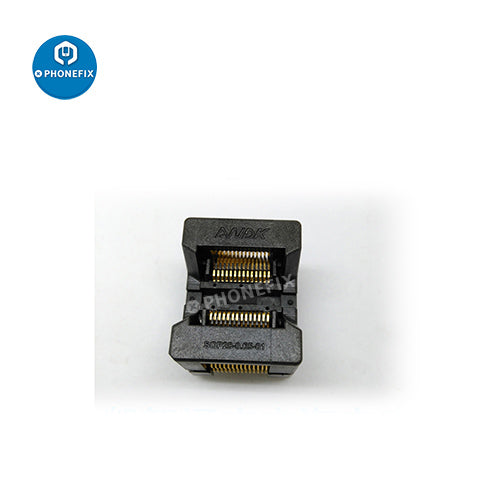

SSOP28-0.65 Burn In Adapter Test Socket

VIPProgrammerSKU: EU1893

Price:
Login to view price

Shipping calculated at checkout

Stock:
In stock

Description

SSOP28-0.65 press shrapnel burn-in chip test socket, ots28(28)-0.65-01 pressed shrapnel adapter.

Features:
1. Use dual contact technology,which is more stable.
2. The socket shell is made of special engineering plastic, high strength and long life.
3. The shrapnel is made of imported copper, small impedance, and good elasticity.
4. Thicker gold-plated layer, the contacts are thickened, the contact impedance is ultra-low, the reliability is high.

Specifications:
1. Material:  Insulated PEI, PPS

2. Parameter:
Insulation resistance: 1000mΩ Min,At DC 500V
Voltage resistance: 700AC/1 Minute
Contact impedance: <25mΩ
PIN elasticity: 55g/PIN(Normal)
Life: 15000 Times
Operating temperature: -65℃~155℃
Operating force: <0.9kg Max

3. Size:
Model: SOP 28-0.65
Pins spacing: 0.65
Pins: 28
