YCS 6558X 6558S 6.5X-58X Trinocular Stereo Microscope, 7050X 7-50X Synchronous Zoom Trinocular Stereo Microscope with Big Aluminum Alloy Base WF10X/23 Eyepiece 144 LED light and 0.35X CTV Lens for Mobile Phone repair, Laptop PC repair, Phone PCB welding, Electronic circuit board BGA CPU chips soldering repair, etc. Professional Mobile Phone Repair Microscopes for Micro Soldering Tasks.
Option:
1. YCS 6558X microscope standard set.
2. RF4 RF-6558X microscope standard set. More details, SKU: RF6558X.
3. RF4 RF-6558Pro microscope standard set. More details, SKU: RF6558RPO.

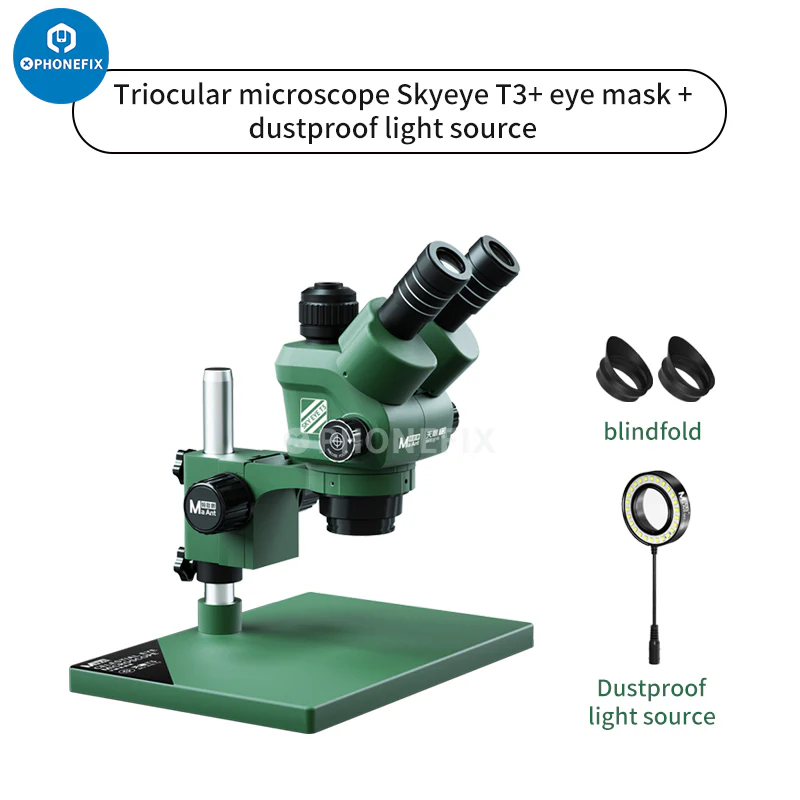

4. MaAnt T3 microscope standard set. More details, SKU: MaAnt-T3.
5. Mechanic ROBOT 6560T-B11 6.5X-60X set. More details, SKU: 6560T-B11.
YCS-6558X Features:
1. YCS-6558X trinocular stereo microscope, 6.5X-58X continuously variable objective lens.
2. 10X/23 high eye point wide angle eyepiece, high transmittance optical glass, 23MM large lens, clear imaging, less fatigue during observation.
3. The microscope bracket assembly can be adjusted freely, the lens module can be adjusted 360°, and the working position can be freely adjusted.
4. The large range of loading base, metal base plate, stable and durable, suitable for more working scenes.
5. The dustproof ring lamp, touch adjustable light source, suitable for a variety of scenes, snap-on design, low energy consumption design, long life, no shadow.
6. Multi-scene application, a wide range of applications, can be used for mobile phone repair, biological research, precision instruments, etc.
7. Please note that the YCS 6558X and YCS 6558S microscopes are the same, with the same appearance and the same specifications.
YCS-7050X Features:
1. YCS-7050X trinocular stereo microscope, 7X-50X zoom lens adjustment, continuous zoom 7X to 50X.
2. 45-degree inclined 360-degree swiveling trinocular microscope head.
3. 10X/23MM high point wide angle eyepiece, high transmittance optical glass, 23MM large lens, clear imaging, less fatigue during observation.
4. 0.35X CTV lens adapter, compatible with most microscope cameras and 4K cameras.
5. The microscope bracket assembly can be adjusted freely, the lens module can be adjusted 360°, and the working position can be freely adjusted.
4. The large range of loading base, metal base plate, stable and durable, suitable for more working scenes.
5. 144 LED light and dust proof Lens, suitable for a variety of scenes, snap-on design, low energy consumption design, long life, no shadow.
6. Multi-scene application, a wide range of applications, can be used for mobile phone repair, biological research, precision instruments, etc.

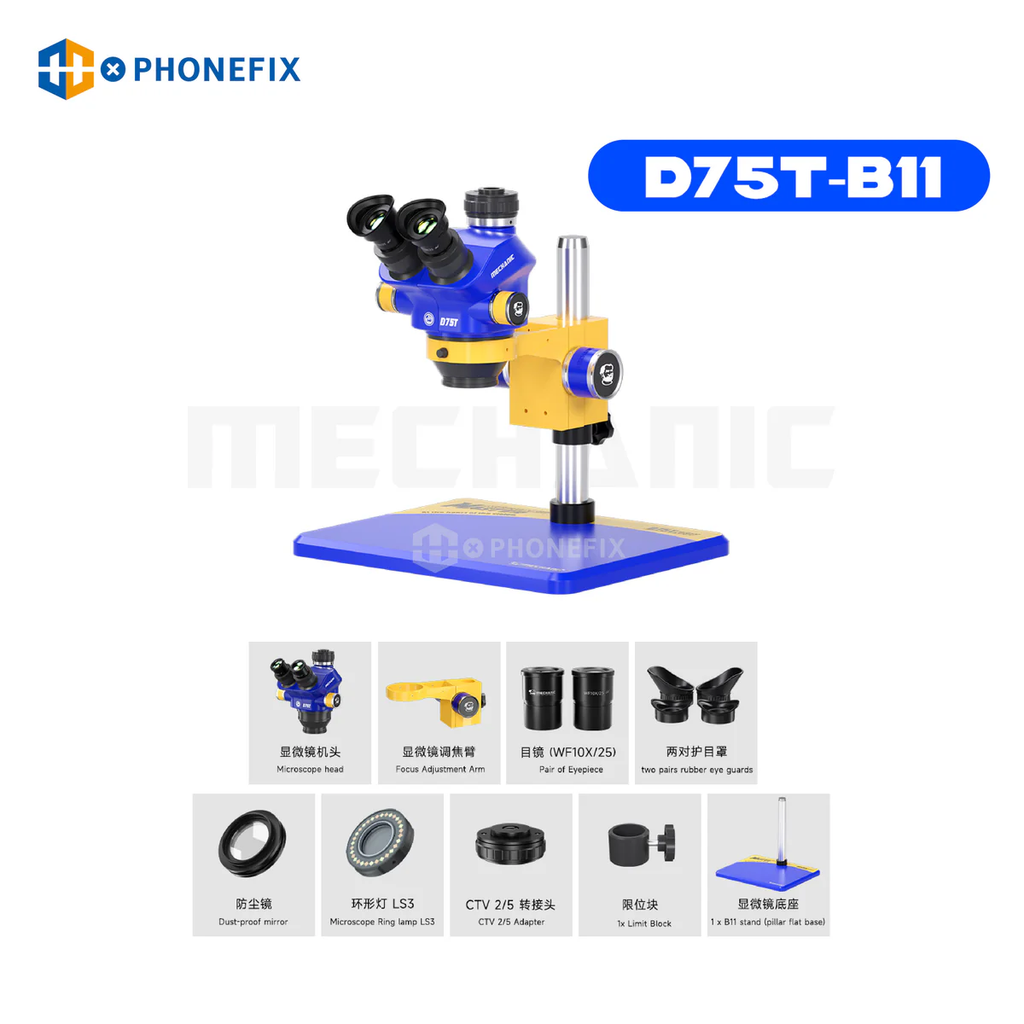

Mechanic D75T-B11 Industrial Trinocular Microscope Features:
1. 7X-50X continuous zoom synchronous trinocular microscope, 45° decline and 360° rotate microscope head, pupil distance 54-76mm, bilateral visual adjustment ±5.
2. High-definition optical objective lens, focus adjustment arm.
3. Used with different types of eyepieces and objective lenses can be expanded to 3.5x-270x, continuous zooming.
5. LED lamp height adjustment, adjustable brightness size, spotlight does not leave a shadow, low power safety quality.
6. Standard WF10X/25 eyepiece, high angle wide angle eyepiece, provide convenience for observers wearing glasses.
7. Standard with B11 column type large plate, other mats optional.
Specification:
YCS 6558X
Magnification: Continuous zoom 6.5X to 58X.
Head: 45-degree inclined 360-degree swiveling trinocular.
Eyepiece: WF10X/23MM adjustable.
Objective: 0.65-5.8X.
Zoom Knob: Metal knob.
Camera connector: CTV Lens Adapter (Monitor and eyepiece Synchronous zoom).
Light source: 144 LED ring light
Base pad: Large metal base.
Accessories (optional): HDMI 4K camera, objective lens, etc.
YCS 7050X
Magnification: Continuous zoom 7X to 50X.
Head: 45-degree inclined 360-degree swiveling trinocular.
Eyepiece: WF10X/23MM adjustable.
Objective: 7-50X.
Zoom Knob: Metal knob.
Camera connector: 0.35X CTV Lens Adapter (Monitor and eyepiece Synchronous zoom).
Light source: 144 LED ring light
Base pad: Big Aluminum Alloy Base.
Accessories (optional): HDMI 4K camera, objective lens, etc.
Mechanic 6560T-B11.
Name: Mechanic Trinocular stereo microscope.
Magnification: 6.5-60X.
Viewing head: 45 degree tilt 360 degree rotation.
Eyepiece: Standard WF10X25 adjustable eyepiece.
Auxiliary Objective Lens Support: 0.3X/0.5X/0.75X/1X/1.5X/2X.
Zoom ratio: 1:9.2.
Camera interface: C connector.
Ratio: Adjustable LED dust-proof ring light source.
Mechanic Mic 3 Trinocular Stereo Microscope:
Non-adjustable eyepieces: WF 10X/25MM.
Zoom ratio: 1:7.1.
Objective: Default, 0.5X, 0.7X, 1.5X, 2.0X.
Working distance: 100MM, 165MM, 117MM, 45MM, 30MM.
Magnification: 0.7X/5.0X, 3.5X/25X, 5.3X/37.5X, 10.5X/75X, 14X/100X.
Visual field: 30.5mm/4.3mm, 64mm/8.4mm, 41.3mm/5.6mm, 19.7mm/3mm, 14.7mm/2.2mm.
Optional eyepiece: WF 10X22mm / WF 15X15mm / WF 20X10mm.
Not adjustable eyepiece: Standard equipment: WF10X25, high-eyepoint wide-angle eyepiece for the convenience of spectacled observers.
Observation head: 45°inclination, 360°rotation, interpupillary distance 54-76mm bilateral vision adjustment 5 diopters.
Objective: 0.7X-5X continuous zoom, objective zoom ratio 1:7.1 to ensure image surface focus.
Auxiliary objective: 0.5X, 0.7X, 1.5X, 2X are available as options.
Magnification: 7X-50X, optional eyepiece and auxiliary objective can be expanded to 3.5X- 270X, continuous zoom.
Working distance: 100MM.
Focus bracket: The inner diameter is 76mm, and the column bore diameter is 32m.
Work platform: 320MM X 260MM.
Base: B11 column type large plate base, can be equipped with other bases see the base series diagram for details.
Dimensions: 200MM(W)X273MM(D)X280MM(H).
Illuminating: A variety of LED ring lights can be selected see the LED light source series diagram for details.
