Description
Ubiprog 5000 programmer is High performance Universal eprom Programmer. Universal ubiprog 5000 programmer is the replacement of SUPERPRO 611S programmer, Ubiprog5000 flash programmer designed for supporting Flash memories, Nand flashes, Serial EEPROMS, Microcontrollers & Automotive ECU, Dashboard parts.
Universal ubiprog 5000 programmer will replace SUPERPRO 611S programmer.

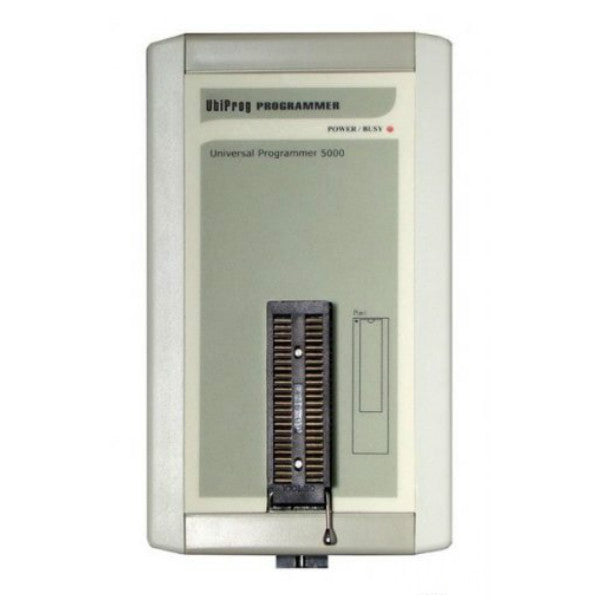

Ubiprog 5000 EEPROM Flash Programmer (48Pin socket)
UBIProg 5000 Programmer is very fast, Low cost, High performance Universal Programmer, specially designed for supporting Flash memories, Nand flashes, Serial EEPROMS, Microcontrollers & Automotive ECU, Dashboard parts. The Heart of UBIProg 5000 is a 500.0000 Gate FPGA with a designed CPU core with 96MHz Clock for fast programming of chips.
Ubiprog 5000 programmer Features:
21000 Supported Devices Flash Memory (Parallel / Nand /Serial) , EPROM , EEPROM , Serial EEPROM , Microcontroller , NVRAM , FRAM , CPLD , PLD , FPGA).
48-Pins ZIF Socket with Pin Continuity tester & 10-Pins ISP/JTAG Connector.
USB 2.0 High Speed ,Program 1 Gbit Nand Flash less than 50 sec , Reading Serial Flash memory with 6 Mbit/Sec Speed.
Auto detection of all flash Memories/Microcontrollers with Device ID.
User friendly software for WIndows XP/VISTA/7 (32,64 bits).
Multiple Programming is possible by attaching 2 or more Programmers to one PC.
Very low cost Main Unit & Low cost adaptors by using one adaptor for all 32/40/48 TSOP flash memories . All 56 pins flash memories by one TSOP56 adaptor.
Special Abilities like, ALtera U S B B l a s t e r Emulation for Quartus Software, Serial Port Emulation , Vehicle ECU , Immoblizer & Dashboard microcontroller Support.
Parallel Flash Memories: up to 56 pins parallel flash memories are supported by UBIProg5000. it Supports different kind of packages (PLCC , TSOP1 , TSOP2 ,VSOP & ...). All Flashes can be automatically detected by software in case of unreadable device names. By using a single adaptor for all 32-48 pins TSOP flashes , user only need 1 adaptor for over 1000 flash chips.
Nand Flash Memories: UBIProg 5000 has an additional Nand+ software , specially designed for Nand flash memories. Nand+ Software has one of the most complete list of Nand flash Memories with algorithms for correction of bad data in MLC Nand Flashes. UBIProg5000 is one of the fastest Nand Programmers in the world with Read & Write Speed up to 8 MegaByte per Second. All Nand Flashes can be automatically detected by software in case of unreadable or remarked device names.
Serial Flash Memories: All 8-16 Pins Serial SPI flash memories are supported by UBIProg5000. All SPI flash Memories can be detected automatically by software in case of unreadable device names. It reads & programs SPi flashes with maximum safe speed on ZIF (6-7 Mbit/second) . Also it Unprotects the write protected flashes before writing data to it.
Microcontrollers:
ATMEL: All AVR 8 bits chips (ATMEGA/ATTINY/AT90S) are supported on ZIF Scocket & by ISP cable. High Voltage Parallel on ZIF Programming of AVR up to 64 pins is supported. newly introduced ATXMEGA Series are supported by both PDI & JTAG Method. Old C51 series & new single cycle C51 series are completely supported. All the above series can be detected automatically by UBIProg5000. ARM7 programming by JTAG is supported.
Microchip: One of the most complete device list for microchip PIC microcontrollers including all PIC12F /PIC12C /PIC16C / PIC16F / PIC18F / DPIC33F / J & K Series. Devices up to 40 Pins can be programmed on ZIF , All PICs can be detected automatically & programmed by ISP cable.
Others: ST, SST, Philips (NXP) , Motorola , Syncmos, Silicon Lab , ICSI , Infineon , Intel , Winbond & ...
Automotive MCUs: Supporting of ST10F & TMS370 Series by ISP cable for many BOSCH/VALEO/SAGEM ECUs (complete ST10F support of XPROG-m programmer device list). supporting of siemense & infineon SAK-C167 connected to 44 or 48 pins flash (Siemense/BOSCH/SAGEM S2000 ECU) like HSE FlasHit Programmer. Supporting NEC & Motorola Devices for Dashboards.
PLD/CPLD/FPGA: Supporting All ALTERA JTAG Devices by emulation of USB B l a s t e r Programmer in Quartus Software. Supporting of Xilinx CPLD/FPGA with jed file. Fast Xilinx FPGA configuration with bit file. Supporting of GAL/PALCE Devices with special option for PALCE unlocking.
Software: With multiple language support (English / Chinese / Arabic / French /FARSI). More languages & Devices can be added by customer request. You Can Download Software & run it in Demo mode to evaluate it.
Programmer adapters: We have a policy for minimum price for adaptors, our adaptors can be used for many different packages. In many cases we support other programmer manufacturers adaptors on our device. Here are example of some of our adaptors:
For All 32/40/48 Pins TSOP Type-1 (20mm Pin-Pin Lenght) , You Need Only one adaptor Model 548T2.
ubiprog 5000 programmer adapters:
For All 56 Pins TSOP Type-1 (20mm Pin-Pin Lenght) , You Need Only one adaptor Model 556T2 , with different sets of bottom plates which can be easily exchanged by user.
