Description

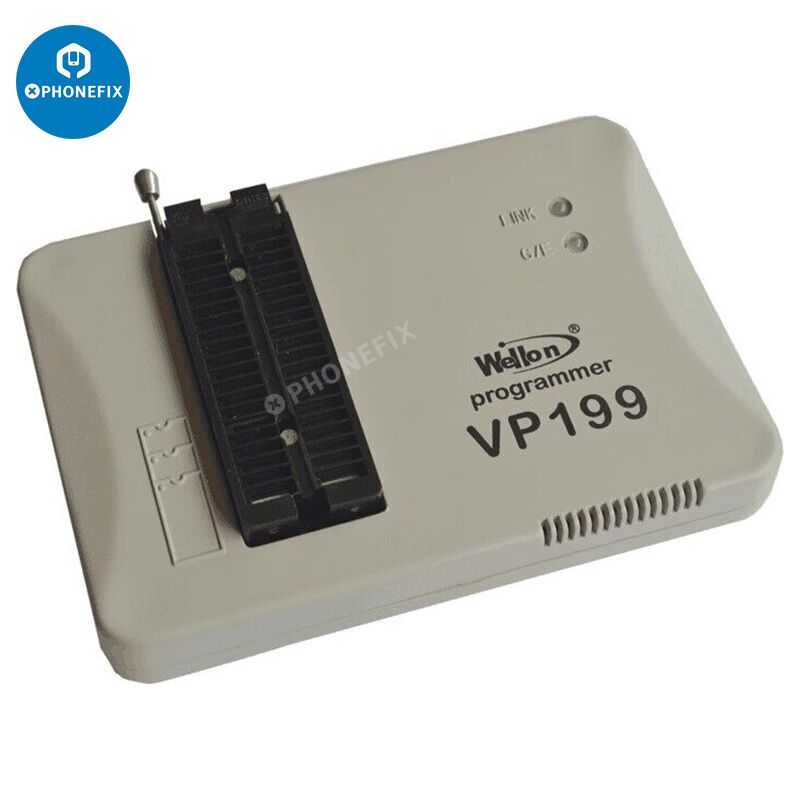

Wellon VP-199 programmer is an upgraded version of VP-190 programmer. Wellon VP199 is an advanced universal programmer IC burning tool with high reliability, high speed, and high performance-price ratio. Wellon VP199 programmer supports thousands of programmable devices such as PLD, E(E)PROM, FLASH, MCU produced by dozens of manufacturers. It can test TTL CMOS standard logic devices and memory. Wellon VP-199 programmer is suitable for electronic product development, batch programming of chips, etc.
Specification:
1. Power specification: input AC 110-240V 50/60Hz, output DC 9V/0.6A.
2. Using lead-free soldering, the shell is made of flame-retardant ABS material that meets environmental standards.
3. The programming module can program or test DIP devices from 4 cores to 40 pins.
4. Through the adapter option, it can support devices in various packages from 4 cores to 44 multi-cores.
5. 40-pin locking socket.
6. The device algorithm is completely implemented by software, and the USB interface has an automatic online upgrade function, which effectively protects the user's investment interests.
7. With a perfect over-current protection circuit, the programmer will not be damaged due to chip short circuit.
8. When connected to the USB port for communication, the reading and writing of most chips can be done without external power supply.
9. Built-in high-speed single-chip microcomputer, automatic data verification, to ensure system reliability.
10. Dimensions: 115*79*18mm; Net weight: 130g.
Features:
1. Integrated menu interface, and it supports 10 languages, they are Simplified Chinese, Traditional Chinese, English, Italian, Dutch, Korean, Polish, Portuguese (Brazil), Turkish, Hungarian 10 languages. The Chinese and English online help system is convenient for users.
2. Support WindowsXP/Vista/Windows 7 (32bit and 64bit)/Windows 8 (32bit and 64bit) operating system.
3. Chip information is extremely detailed, including packaging diagrams, chip model nomenclature and adapter information.
4. Loading, editing and saving files is extremely easy.
5. The manufacturer's logo is provided in the chip selection, which can help users find chips more clearly and quickly.
6. The maximum capacity of the supported chip is 8Mbit.
7. Automatic identification of file format.
8. Automatic detection of reverse chip insertion, wrong insertion, poor contact of pins, internal short circuit and open circuit of the chip, etc.
9. It has the function of automatic programming after setting the chip contact is reliable, which is convenient for mass production.
10. The programming parameters can be modified, and the programming parameters can be determined according to the specific conditions of the chip.
11. Chip serial number auto-increase function.
12. Choose the model according to the manufacturer or choose the manufacturer's two-way selection method according to the model, and can automatically search and select the device.
13. Fast buffer editing and modification, block copy, block filling, high and low byte exchange, character string search and other functions.
14. Provides flexible file and cache management functions. It can realize the automatic clearing of the memory when the file is loaded, and the splicing and loading of multiple files.
15. Supported file formats: JEDEC, BINARY, MOTOROLAS, TEKTRONIX, INTEL, HOLTEK, EMC (.CDS), INTEL HEX16 format.
16. Support automatic separation of byte (BYTE), word (WORD), double word (DOUBLE WORD) format data files.
17. Can test TTL & CMOS standard logic devices. And can automatically determine the model of the standard logic device.
18. The built-in test vector editor provides a test library structure open to users, and users can add test devices by themselves.
19. Perfect self-test function to ensure the integrity of the hardware. Functional testing can be performed on the programmer.
