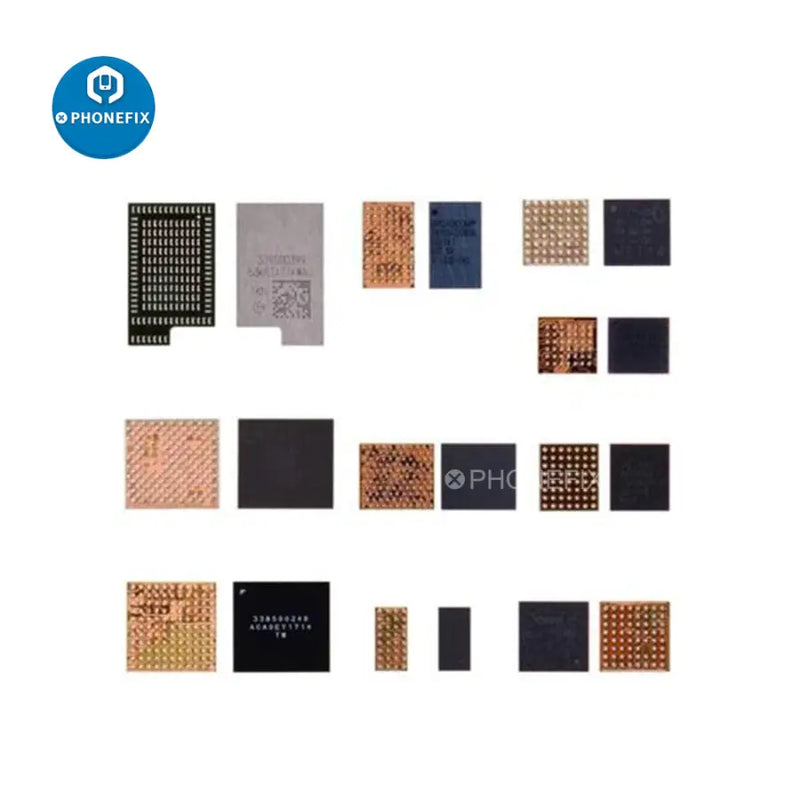

Logic Board Common Fault IC component Set replacement For for iphone 6-X board repair, Common Fault IC component set for iphone 6S/6SP/7/7P/8/8P/ X replacement.
The most common fault IC which with high failure rate packed as a set. Easy to buy for more efficient repair. For faulty, broken, or cracked component replacement.
one set Package iphone 6S/6SP motherboard Common Fault IC set.
The package includes : For iphone 6S/6SP (10pcs/set)
· U2300, Charging IC If damaged, may cause no charging, charge slow,current leakage, large current, etc.
· U4500, USB IC Tristar If damaged may cause cannot connect with PC, no charging, Apple logo boot loop, start current fixed at around 260mA, etc.
· U3500, Audio IC If damaged, will cause no voice, large current, current leakage, etc.
· U3700, Speaker AMP IC If damaged, no voice, voice low, large current, etc.
· U3800, ARC Vibrating IC If damaged may cause no vibration, large current, etc. (*Compatible with U3800).
· U4020, Backlight Driver (U4050 6SP) If damaged, backlight, large current, etc.
· U4000, Chestnut Display IC If damaged, no display, no touch, large current, etc.
· U_PMU_RF, Baseband PMU If damaged, error code 4013, keep restarting, etc.
· U_WTR_RF, intermediate Frequency IC If damaged, no signal, no network，etc.
· U5200_RF, Wi-Fi/BT Mudule If damaged will cause no Wi-Fi, no BlueTooth, restart upon power on, and failure of awake, etc.
12pcs/set Package iphone 7 7P motherboard Common Fault IC set,
The package includes:for iphone 7/7P (12pcs/set)
· U2101, Charging IC If damaged may cause, no charging, charging slow, etc.
· U4001, USB Control IC If damaged may cause cannot connect with PC, no charging, Apple logo boot loop, start current fixed at around 260mA, etc.
· U3101, Audio CODEC IC If damaged, will cause no voice, large current, current leakage, etc.
· U3301, Ring Amplifier IC If damaged will cause no voice in both receiver and speaker mode, current leakage, large current, etc.
· U3402, Ringtone Amplifier IC If damaged, no voice, voice low, large current, etc.
· U3502, Vibrating Driver If damaged may cause no vibration, large current, etc.
· U3701, Backlight IC If damaged, backlight, large current, etc.
· U3703 Display/Touch Power IC If damaged, no display, no touch, large current, etc.
· U2301, Boost IC If damaged will cause cannot startup, large current, current leakage, etc.
· BBPMU_RF (Qualcomm/Intel) If damaged, error code 4013, keep restarting, etc.
· XCVR0_RF, Intermediate Frequency IC If damaged, no signal, no network, etc.
· WLAN_RF, Wi-Fi Bluetooth If damaged will cause no Wi-Fi, no BlueTooth, restart upon power on, and failure of awake, etc.
one set Package iphone 8 8P motherboard Common Fault IC set.
The package includes : For iphone 8/8P (12pcs/set)
· U3300, Charging IC If damaged, charging failure, large current or current leakage.
· U3400, Wireless Charging IC If damaged will cause wireless charging failure, large current, power on failure and current leakage.
· U6300, USB IC If damaged, fail to connect with PC, charging failure. Apple logo upon power on and reboot, power on current fixed at 250mA, etc.
· U4700, Audio Codec IC If damage, no voice, current leakage, large current, etc.
· U5000, Ear speaker Amplifier If damaged will cause no voice in both receiver and speaker mode, current leakage, large current, etc.
· U4900, Loudspeaker Amplifier IC If damaged, hand-free mode will be failed, no voice, current leakage, large current, etc.
· U5100, Vibrating IC If damaged, no vibration, current leakage or large current, etc.
· U5660/U5650, Backlight Driver IC If damaged, no backlight, no display and current leakage.
· U5600, Display/Touch Driver If damaged, no display and touch function.
· WLAN_W, Wi-Fi Module If damaged, will cause no Wi-Fi, no BlueTooth, restart upon power on, and failure of awake, etc.
· XCVR0_K, If damaged, no service, no network.
· U_PMIC_E(QCOM)/ BBPMU_K (Intel), Baseband PMU If damaged, error code 4013 upon reboot, restart upon power on, no baseband info, no service, etc.
12pcs/set Package iphone X motherboard Common Fault IC set.
The package includes : For iphone X (12pcs/set)
U5600 Touch PMU (Acorn PMU) No touch if it’s broken.
U5100 ARC Driver IC No vibrating, current leakage or large current if it’s damaged.
U4700 Audio IC If damaged may cause MIC can not work, no voice. Current leakage and large current problem.
U6300 USB IC Can not connected with computer, can not charge, reboot.
U3300 Charging IC Can not charge or charge function is abnormal if it’s broken.
iphone X Common Fault IC component Set For Logic Board:
U3400 Wireless Charging IC If damaged may cause wireless charging can not work, current leakage or large current.
U5000 Upper Audio AMP IC Earpiece, upper loudspeaker can not work, current leakage and big current (compatible with U5100).
U4900 Lower Audio AMP IC If damaged, lower loudspeaker not work current leakage or large current (compatible with U5100).
U_PMIC BB PMU No Baseband info, no service, error code 4013 if it’s broken.
iphone X Common Fault IC component Set For Logic Board:
UWLAN_W Wi-Fi No Wi-Fi, boot loop, phone can not be activated.
BBPMU_K Baseband PMU (Intel) No Baseband info, no service, error code 4013 if it’s broken.
XCVR0_K No service, no network, no IMEI, etc. if it’s broken.
