Description
RT809H EMMC Nand Flash Programmer for Car navigation TV mobile phone eMMC: NOR NAND EMMC EC MCU ISP CHIP, RT809H EMMC Nand FLASH Programmer is the 48-pins powerful fast universal Programmer extremely, RT809H eMMC Flash programmer support eMMC, PC BIOS, CAR DVD, SMART TV, NOR,NAND, EC,MCU, ISP...
RT809H Universal Programmer for eMMC CAR DVD SMART TV BIOS.
Option:
Option 1: standard package
Option 2: RT809H With 10pcs adapter
Option 3: RT809H With 16pcs adapter
Option 4: RT809H With 26pcs adapter
Option 5: RT809H With 35pcs adapter
Full Support LCD TV FLASH drivers read and write unlimited capacity TSOP48 nand FLASH EMMC TSOP56 pin TOP8-16 pin Support CAR DVD, SMART TV.
- Can automatically detect chip number for all Chips.
- Can put ic in any position and make intelligent sense.
- Support Read and program Laptop I/O via keyboard line.
- Support Read and Program LCD TV VIA VGA and HDMI PORT.
- Support ADD new flash by yourself without wait for factory.
- Built in Most of repair applications TV,DVD,DVB,and many isp software.
- Make selftest for LCD TV itself and diagnostic fault.
- Read and programing flash on motherboard without removing out
- Support Read and Programming OTP area .
- Support UPTO 64GB NAND FLASH
Features:
48-pins powerful pindrivers, no adapter required for any DIL devices
· ISP connector for in-circuit programming
· VGA port to read and write LCD TV-MONITORS without disassembly .
· HDMI port to read and write LCD TV-MONITORS without disassembly .
· Connection to PC: USB 2.0 (up to 480 Mbit/s, high speed/full speed) and 1.1 compatible interface
· Comfortable and easy to use control program, works with all versions of MS Windows
· can support any flash and very easy to add new flash .
· High programming speed.
·Advanced and powerful software functions.
·Provides very competitive price coupled with excellent hardware design for reliable programming.
· the programmer performs device insertion test (wrong or backward position) and contact check (poor contact pin-to-socket) before it programs each device. These capabilities, supported by overcurrent protection and signature-byte check help prevent chip damage due to operator error.
· The selftest capability allow to run diagnostic part of software to thoroughly check the health of the programmer.
·Support Auto select for any series of flash including TSOP48-NAND-EMMC-PLCC,,ETC however Programmer is driven by an easy-to-use control program with pull-down menu, hot keys and on-line help. Selecting of device is performed by its class, by manufacturer or simply by typing a fragment of vendor name and/or part number.
· All known data formats are supported. Automatic file format detection and conversion during loading of file.
·The software also provide a special information about programmed device. As a special, the drawings of all available packages are provided
· The software provide a full information for ISP implementation: Description of ISP connector pins for currently selected chip, recommended target design around in-circuit programmed chip and other necessary information.
Standard Package list:
1: RT809H programmer x1
2:USB cable X1
3: VGA cable X1
4: TSOP/VSOP/SSOP Adapter Board X1
5: RT-SOP8/SOP16 Adapter Board X1
6: Softerware CD X1
7: Male header
eMMC Read Verify 2GBytes with socket
eMMC_WRITE_Verify_2GBytes_with socket

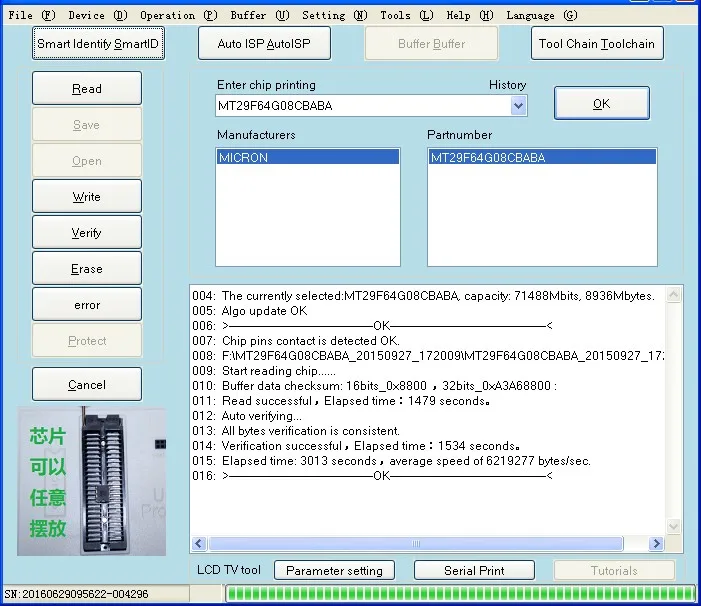

NAND_Read_Verify_64Gbits
