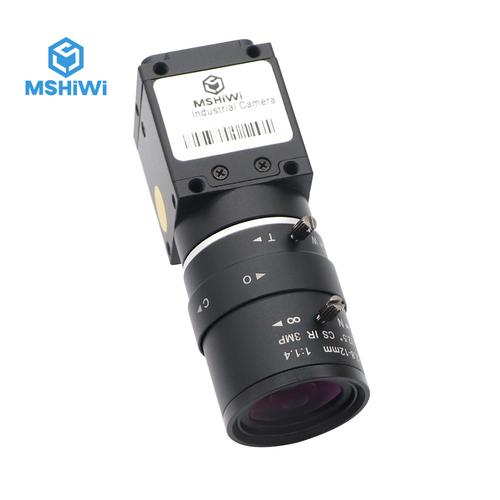

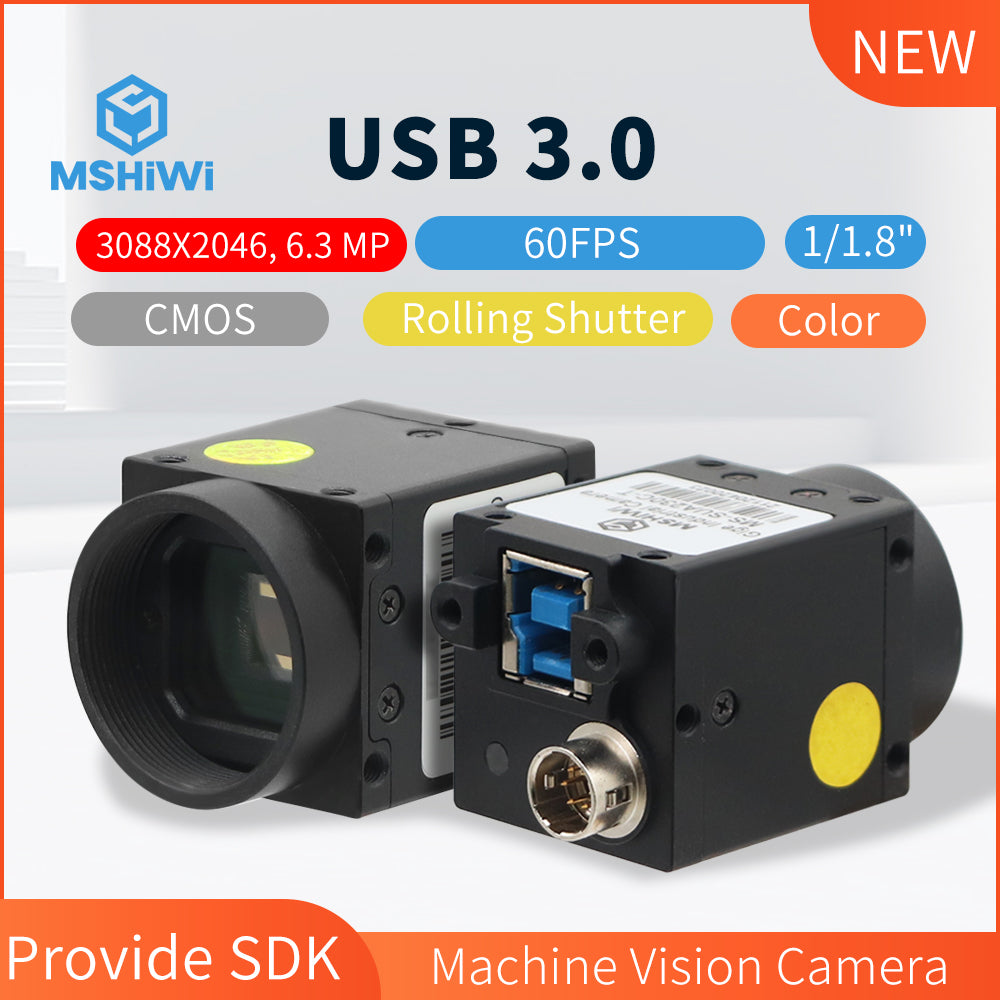

USB 3.0 Rolling Shutter Vision Industrial Camera 6.3MP 1-1.8" 60FPS CMOS

VIPProgrammerSKU: HW016

Price:
Login to view price

Shipping calculated at checkout

Stock:
In stock

Description

SuperSpeed USB3.0 Vision Cameras: Resolutions 3088X2046, Frame rates 60FPS, CMOS/CCD Sensor, Rolling / Scroll Shutter, Color.With SDK + Demo, Support Halcon, OpenCV, LabView, Matlab, Python, etc.

USB 3.0 Series Features:
1) Camera transfer speed is fast.
2) Compatible with U3VISION vision standard.
3) High frame rate camera, 0.3MP 790FPS, 1.3MP 210FPS, 4.0MP 88FPS, 20.0MP 20FPS.
4) Support multiple cameras to work at the same time.
5) Data packet retransmission technology to ensure reliable data transmission.
6) Provide SDK, easy to use and convenient.
7) Support external trigger and flash.
8) SDK supports Windows and Linux systems.
9) SDK supports VC/C++, VB6, VB.NET, Delphi, C#, JAVA, Python, OpenCV.

Product Feature:
1) Camera parameter archive is saved as a file.
2) Camera name can be modified to easily distinguish multiple cameras.
3) With a maximum of 16K bytes of data storage.
4) Support 8bit, 24bit, 32bit image format output.
5) Ethernet, USB3.0, and USB2.0 camera SDK are the same.

Package incluede:
1 x Industrial Camera (No include lens)
1 x 3 Meters Cable
1 x Trigger Line

Industrial Camera Parameters:
Model: HT-SUA630C-T
Sensor: 1/1.8” CMOS
Shutter Type: Rolling Shutter
Camera Type: Color
Pixel Size: 2.4X2.4μm
Effective Pixels: 6.3 MP
Resolution @FPS: 3088X2046@60FPS,2592X1944@63FPS,640X480 @281FPS
Pixel Bit Depth:12bit
Sensitivity: 425mV 1/30s
GPIO: 6-pin Hirose Connector
Acquisition: Continuity/Soft Trigger/Hard Trigger
Maximum Gain (multiple): 32
Exposure Time (ms): 0.0049~10188
Filters: 650nm Infrared Filter
Frame Buffer: 128M Bytes
Custom Data: 2K Bytes
Video Output Format: Bayer8
Visual Standard Protocol: USB3Vision 1.0、GenICam
Lens Interface: C/CS mouth
Data Interface: USB3.0 Type B
Power Supply: 5V, USB Powered
Power: <2W
Dimensions: 29(mm)X29(mm)X32.7(mm),
Weight: < 70g
Operating Temperature: 0~50 Degrees
Operating System: Support WIN7/8/10 32&64 System; PC Linux System
Driver: Directshow; Halcon; Labview; OCX; TWAIN Component
Programming Ianguage: C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/OpenCV
Other Functions: Support ROI resolution, contrast and gamma adjustment, saturation adjustment, etc.

Machine Vision Software:
Support Halcon, OpenCV, LabView, Matlab, Python, etc.

Demo Source Code:


Hardware Trigger Line Sequence:


Camera Size:
