High Performance XGecu T56 Universal Programmer for Nor Flash / NAND Flash / EMMC TSOP48 / TSOP56 / BGA48 / BGA63 / BGA64 / BGA100 / BGA153 / BGA162 / BGA169 / BGA221, V10.27 XGecu T56 Programmer with 56 Pin Drivers, Support 24555+ ICs for PIC/NAND Flash/EMMC TSOP48/TSOP56/BGA.
XGecu T56 Support Device List:
www.xgecu.com/MiniPro/T56_List.txt

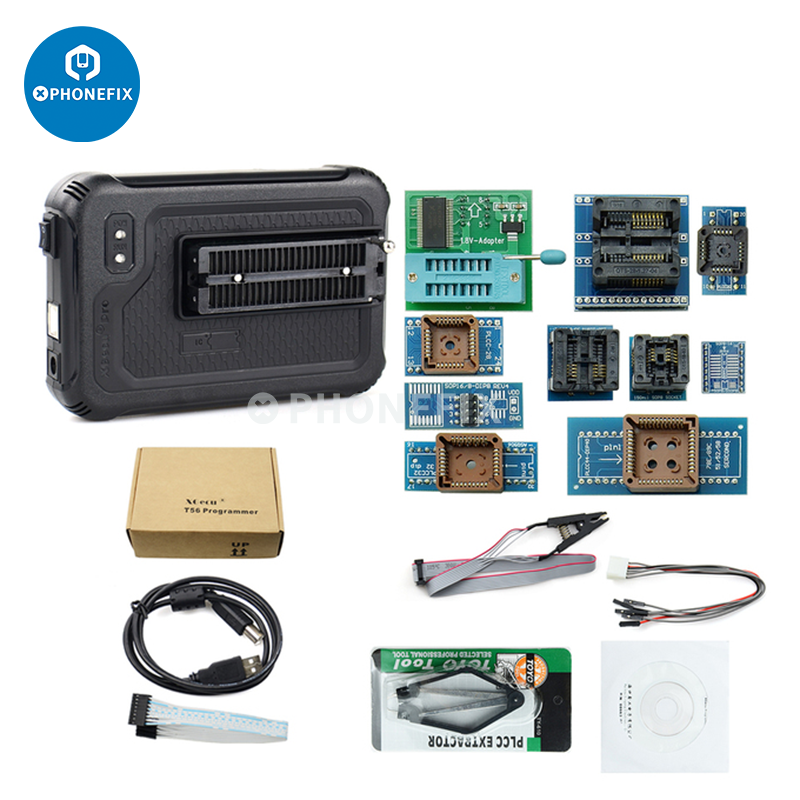

Package include:

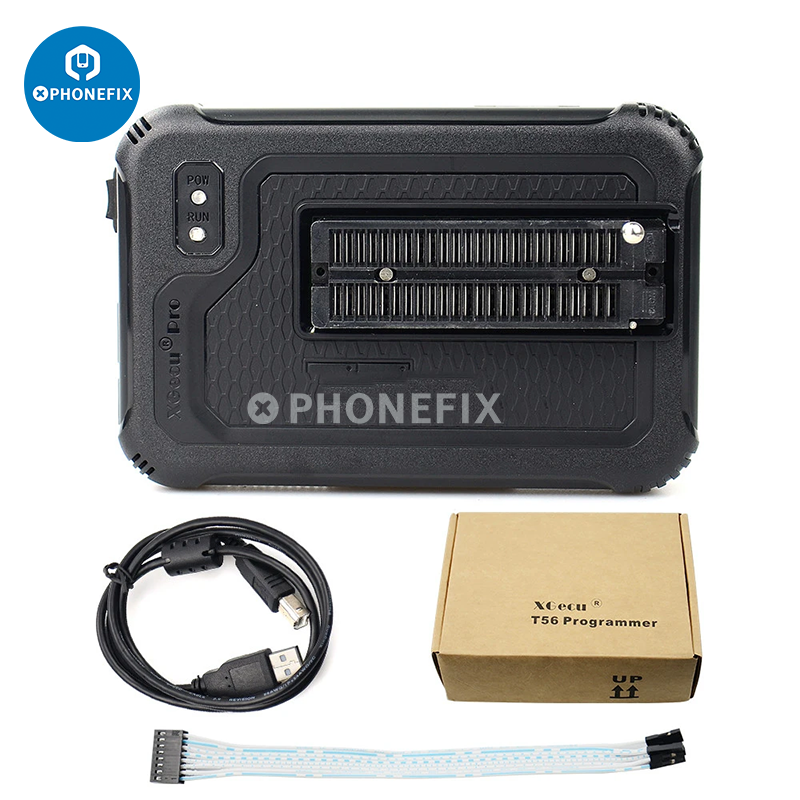

XGecu T56 + USB +ISP Cable+

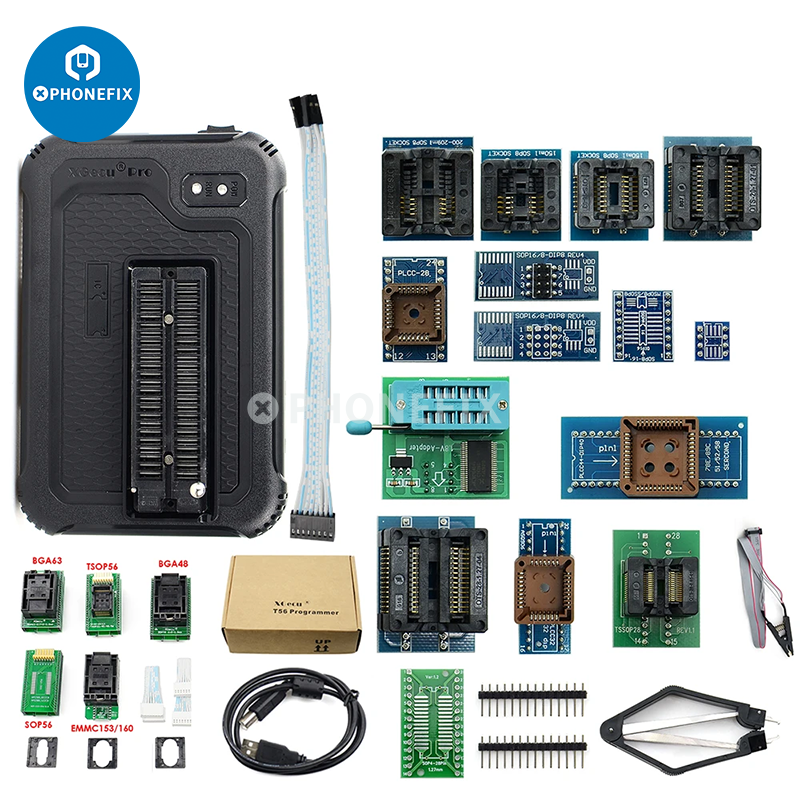

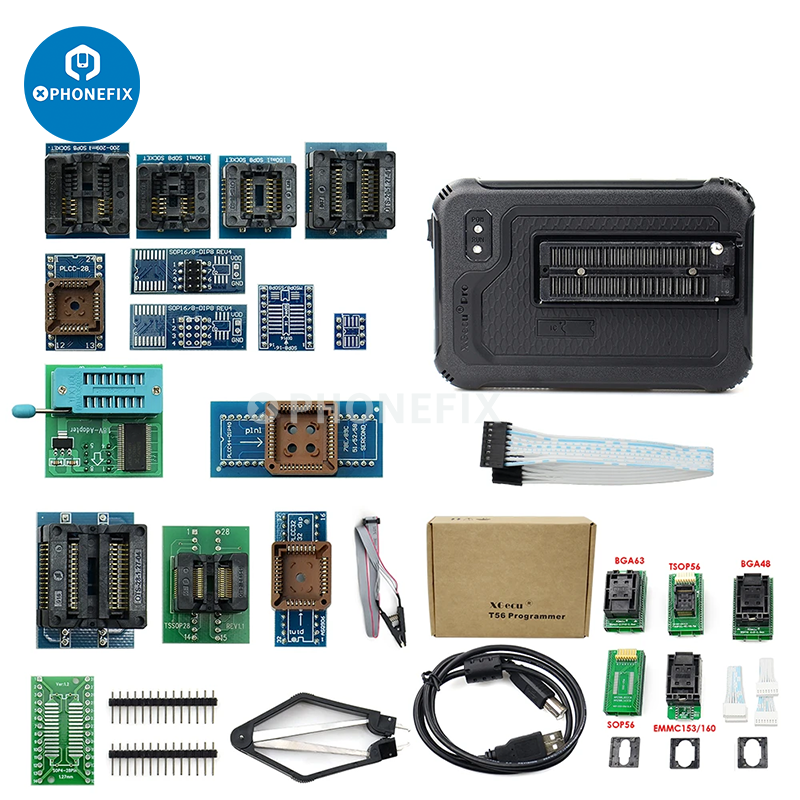

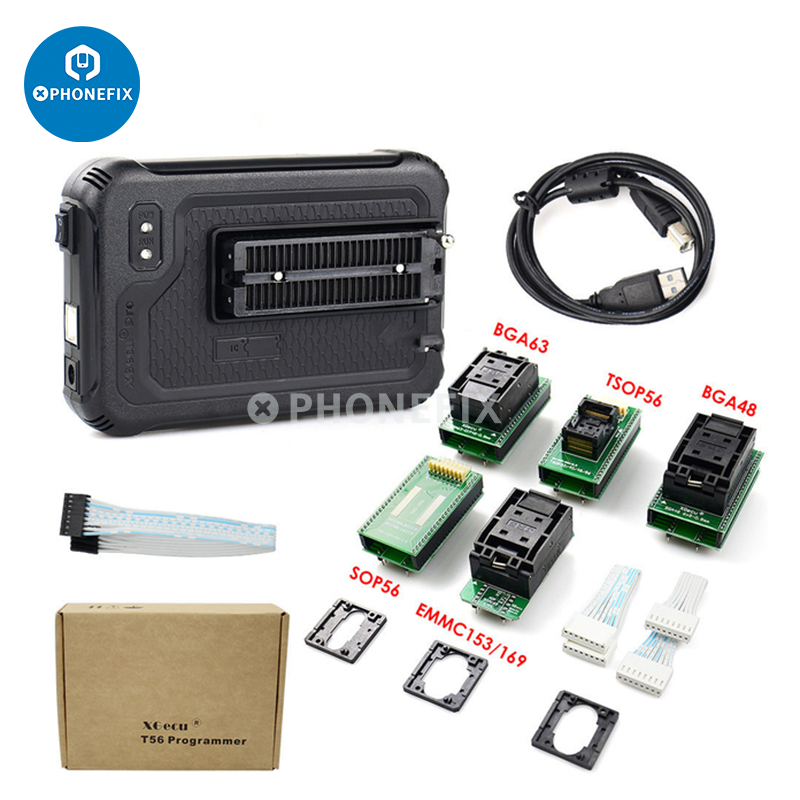

5pcs Adapter: (BGA153+BGA63+BGA48+TSOP56+SOP56);
Please note: the package don't include CD, you can download documents on official website: www.xgecu.com
Ultra speed universal 56-pins powerful pindrivers programmer, no adapter required for any DIL devices. Fully open source programming adapter and competitive price. Design focused on high-capacity memories programming. Remarkable performance, ultra fast programming speed, very small and portable. Cool appearance, low power consumption, excellent work stability.
********************************************************************************
1. Support wider chip range, larger capacity, faster speed:
Base the TL866II Plus
add Support for Nor Flash / NAND Flash / EMMC
********************************************************************************
User-friendly Software Interface, easy to use, more functions, easy to upgrade software
Ultra-high cost performance, suitable for small batch programming below 5000 , also suitable for developers and professional maintenance personnel.
Support chip model:
24/25/26/93 serial EEPROM, 27/28/29/36/37/39/49/50 EPROM, Paged EPROM,
FLASH memory (NOR, NAND, SPI NAND, EMMC, NVRAM, SRAM, CPLD (GAL), etc.
Support package: add DIP42/PLCC44/SOP44/QFP44/TSOP48/TSOP56/BGA48/BGA63/BGA64 /BGA100/BGA153/BGA162/BGA169/BGA221 on the basis of TL866II.
NAND EMMC supports maximum capacity up to 256G
XGecu T56 Support Device List:
xgecu.com/MiniPro/T56_List.txt
(please note: before buying, make sure the chip models you want to program are in the support list!)
********************************************************************************
2.Programmer parameters
********************************************************************************
(1). 32-bit MCU 200MHZ + Xilinx SP6 FPGA structure, USB2.0 HS 480MHZ transmission
(2). 56-pins powerful pindrivers IO design. All pins have a maximum operating frequency of 50MHZ and high reliability.
(3). Stable and reliable 8-Pins in-circuit programming ISP interface, the wire Length is more than 30CM, and it can communicate reliably at 25MHZ. 25 series / EMMC in-circuit programming with a maximum clock frequency of 40MHZ-50MHZ
(4). VCC voltage 1.2-6.5V 64 levels adjustable
VPP voltage 6.5-25V 64 levels adjustable
IO communication signal voltage continuously adjustable 1.2V-3.6V
VCC 120MA-320MA overcurrent protection continuously adjustable
VPP 120MA overcurrent protection.
(5). Power consumption: 5V < 500MA. All chips do not need external power supply.
It can be connected to an external power supply 5V-5.5V 500MA for multipile programming.
The external power can be powered by a cell phone charger or charge pal can be seen everywhere.
The programmer has multiple protections for the external power supply:
Overvoltage protection / reverse connection protection / overcurrent protection / low voltage prompt.
(6). Write EMMC Speed: 12MB/s-25MB/s
Reading EMMC speed: 14MB/s-45MB/s is 2-5 times faster than similar programmers.
(This is important for large-capacity chips, 64GB EMMC chips,
If 10MB/s (the average programmer cannot reach 10MB/s) reading takes 6400 seconds,
T56 can usually reach more than 20MB/s, as long as about 3000 seconds)
Ability to handle extremely high speeds, meaning that programmer hardware has greater stability at lower speeds
(7). Open self-test function, self-check each VPP/VCC /GND/ IO
3. 56 Pins FULL DRIVE
Compared with the general 48-pin universal programmer, the 56-pin full drive has 8 more universal IO ports. The advantage of the 56 universal drives is that the all chips below 56 pins only need one adapter in the same package.
Example: A general TSOP56 adapter, which can program all of TSOP56, TSOP48, TSOP40, TSOP32 on the T56 programmer. One TSOP56 adapter is equivalent to the function of five adapters of the ordinary 48-pin universal programmer.
